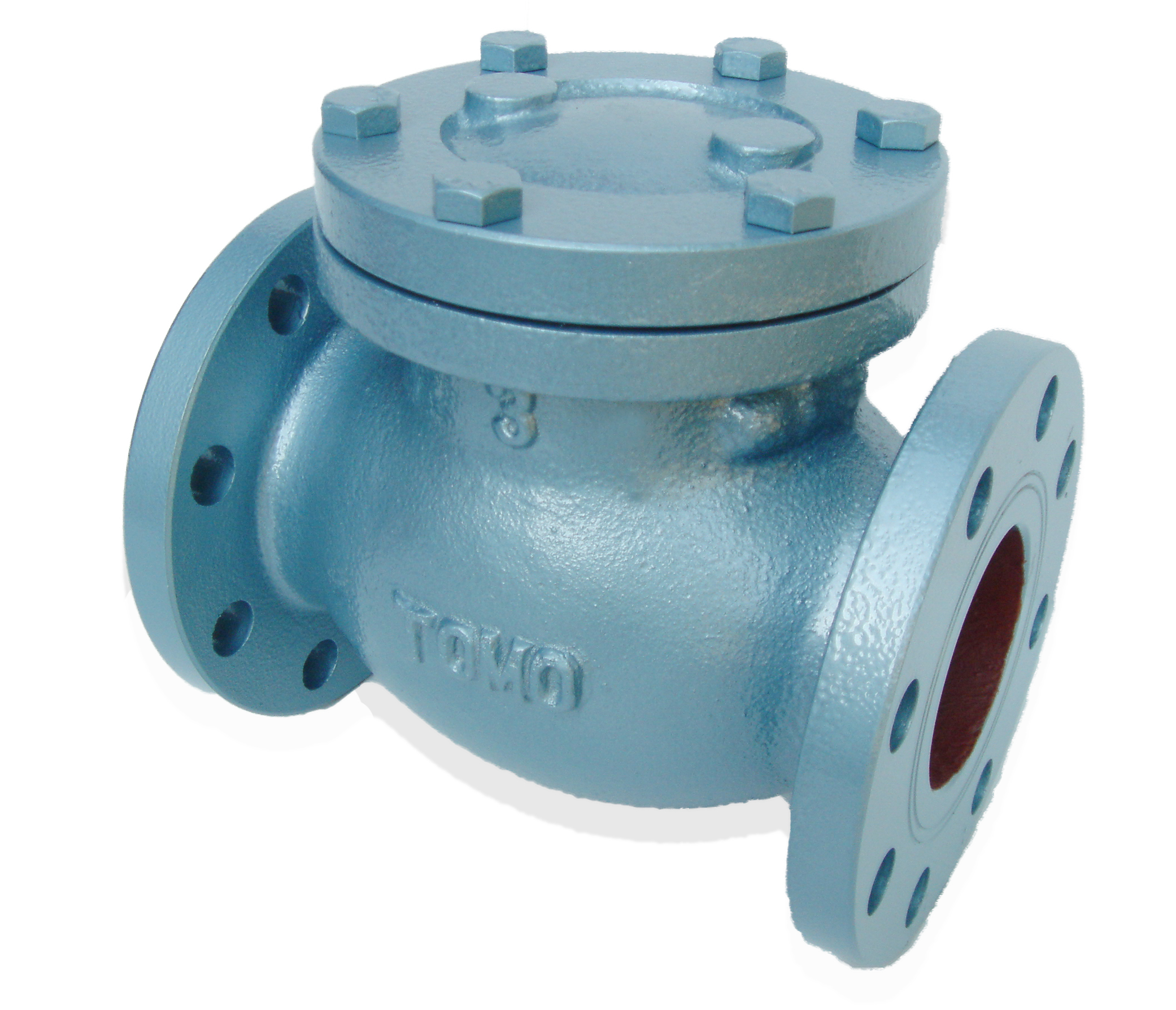

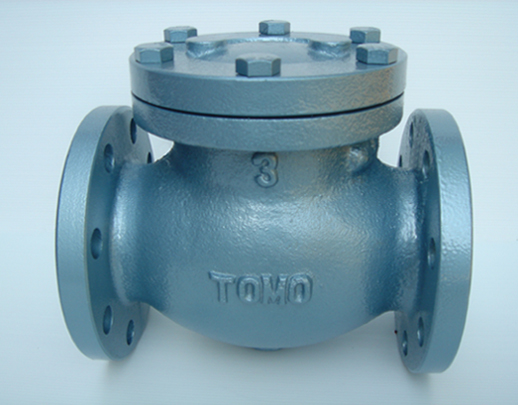

Swing Check Valves

  • Bolted cover
  • Swing type disc

Description

Materterial

Parts Materials
Body Cast iron
Cover Cast iron
Disc
   size 2″ to 3″ Bronze
   size 4″ to 12″ Cast iron
Disc seat ring Bronze, Stainless steel or Rubber (EPDM)
Body seat ring Bronze, Stainless steel
Disc nut Steel
Washer Steel
Plug Brass
Gasket Asbestos joint sheet
Cover bolt / nut Steel
Arm Cast iron



Dimensions

mm
inch
50
2
65
21/2
80
3
100
4
125
5
150
6
200
8
250
10
300
12
L 203 216 241 292 330 356 495 622 699
H 115 135 150 170 210 230 260 300 390
