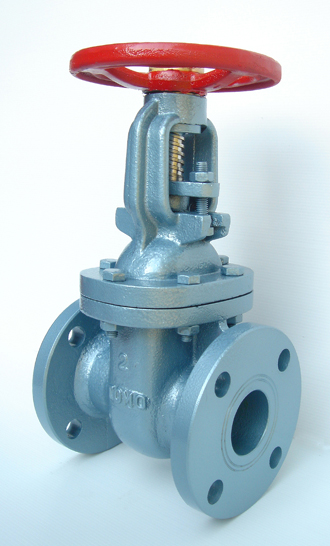

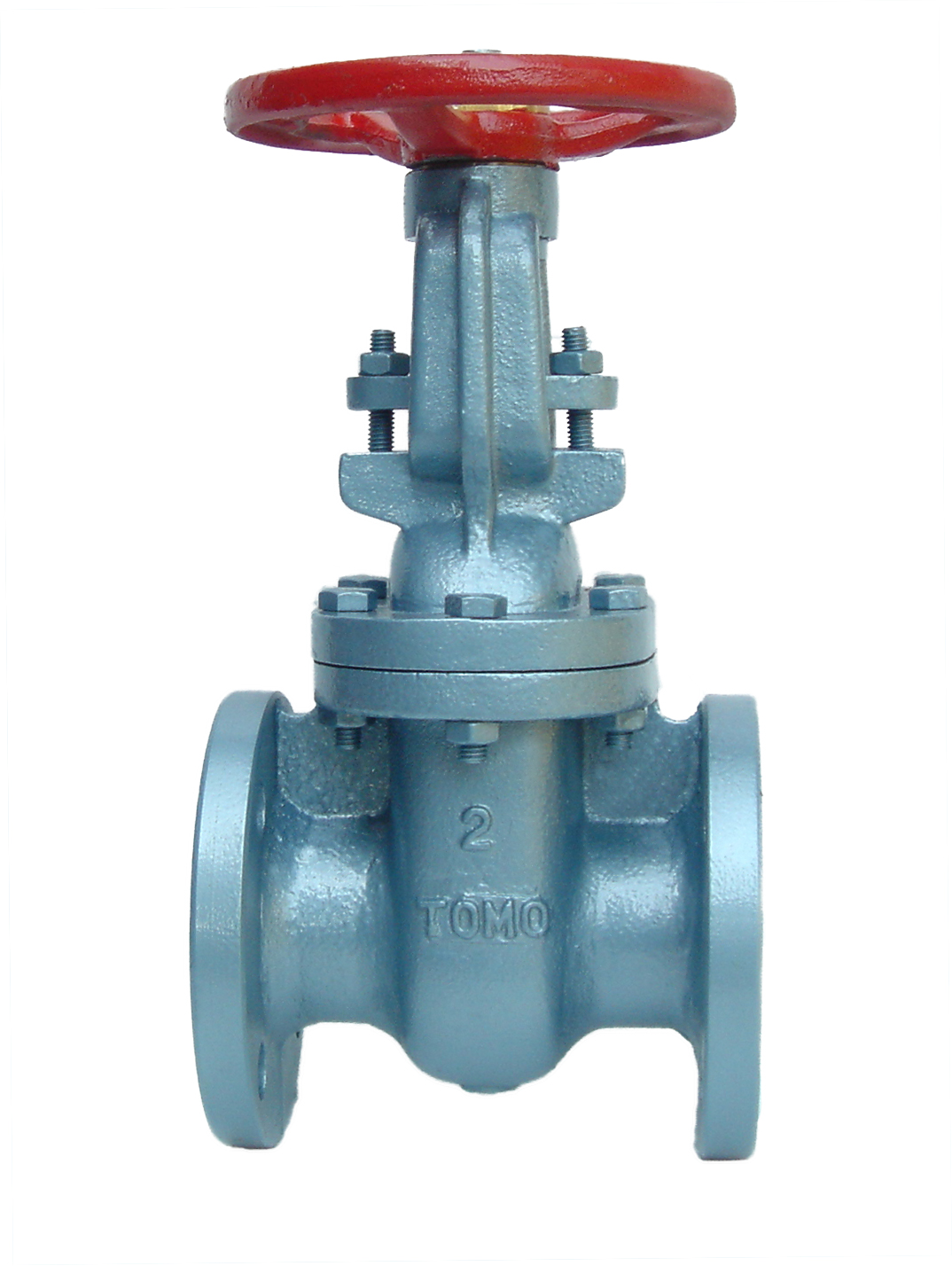

Gate Valves

  • Bolted bonnet
  • Outside screww & yoke
  • Rising stem
  • Flanged ends
  • Solid wedge disc
Categories: , Tags:

Description

Materterial

Parts Materials
Body Cast iron
Bonnet Cast iron
Stem Stainless steel
Disc Cast iron
Disc seat ring Bronze, Stainless Steel
Body seat ring Bronze, Stainless Steel
Gland Cast iron
Gland packing Asbestos graphite
Handwheel Cast iron
Gasket Asbestos joint sheet
Gland bolt / nut Steel
Bonnet bolt / nut Steel
Yoke Sleeve Brass
Yoke Cast iron
Yoke bolt / nut Steel



Dimensions

mm
inch
50
2
65
1/2
80
3
100
4
125
5
150
6
200
8
L 178 190 203 229 254 267 292
H 350 385 450 540 635 710 970
D 170 170 195 220 240 240 345



mm
inch
250
10
300
12
350
14
400
16
450
18
500
20
600
24
L 330 356 381 406 432 457 508
H 1250 1440 1625 1855 2070 2340 2770
D 380 440 550 590 700 700 700
